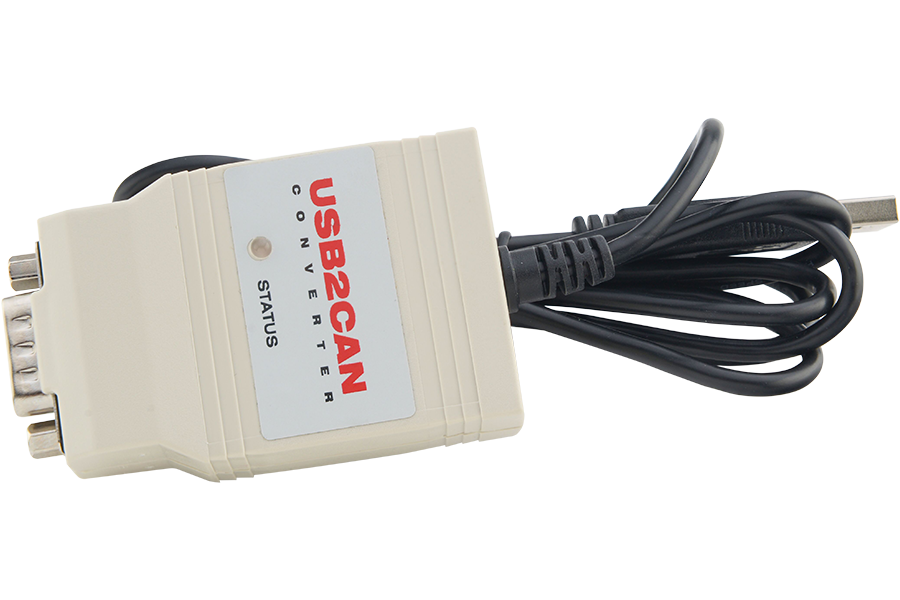

USB2CAN

This is one of the best and most cost-effective CAN USB adapters on the market. CAN2USB is galvanically isolated and is available for purchase online.

Buy

Overview

With USB2CAN you can monitor a CAN network, write a CAN program and communicate with industrial, medical, automotive or other CAN based device. The CANBUS USB adapter connects a CANbus to the USB port of a PC or notebook, which also supplies the power to the adapter (no power supply needed).

In the downloads section now you can find all the related drivers and software applications and even Windows 7 64-bit kernel driver, which was added recently.

" data-lightbox="product-images"> ?>
" data-lightbox="product-images"> ?>
" data-lightbox="product-images"> ?>

Specs

CPU
ARM7 based (STR750FV2)
Electrical isolation
Galvanic isolation 500V
Power source
USB
Interface speed
USB 2.0 full
CAN specifications compliance
2.0A (11-bit ID) and 2.0B (29-bit ID)
CAN bus baud rate
10, 20, 50, 100, 125, 250, 500, 800, 1000 Kbit/s or user definable
Firmware upgrade
Via bootloader
Simultaneous use quantity
Up to 4 USB2CAN on a single PC
CAN bus interface connector
SUB-9D
LED status indications
Bus warning, error passive, bus off
Available drivers
Windows 2000, Windows XP, Windows Vista, Windows 7, Linux
Supported library
Open source CANAL API DLL for Windows
3rd party protocol support
Driver for VSCP protocol
Testing modes
Silent and loopback

Downloads
