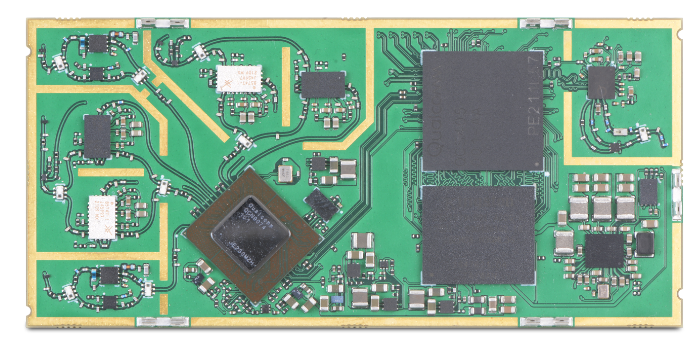

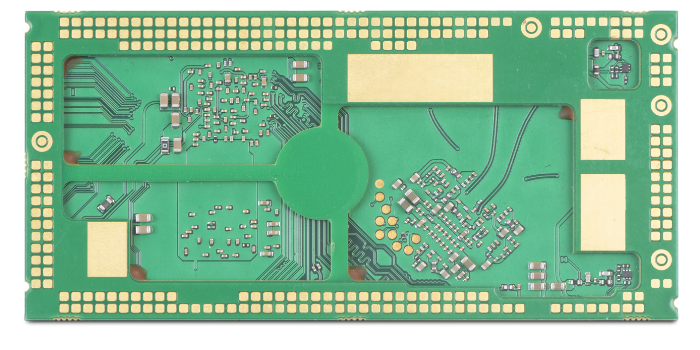

TobuFi is a premium SoM equipped with a Qualcomm® QCS405 processor and a powerful Wi-Fi 6 dual-band radio. This compact SoM blends a high-performance CPU with an extended-range radio module, making it perfect for drone and robotics applications. It offers sophisticated onboard processing for real-time decisions and ensures reliable long-distance communication.

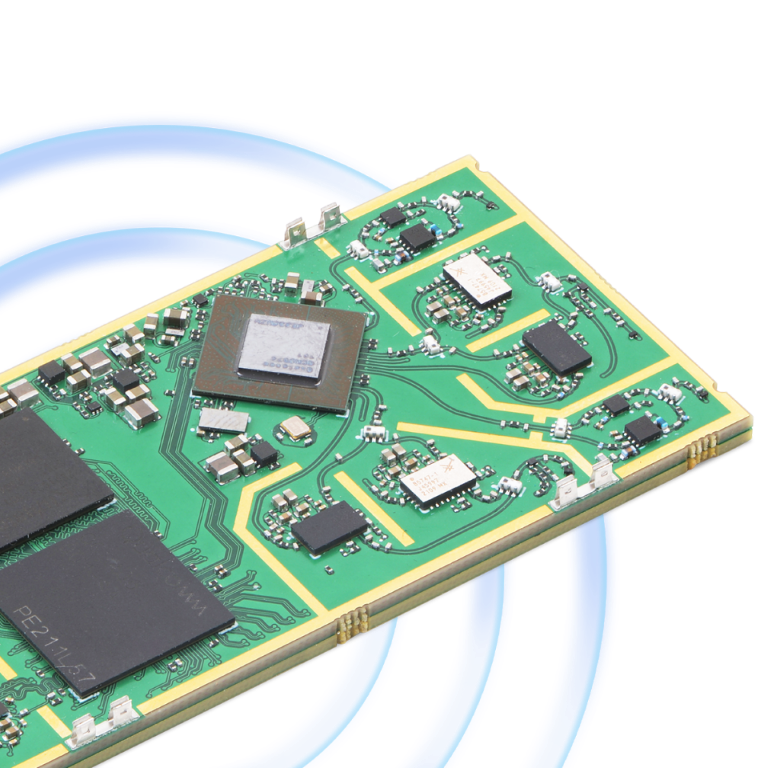

This product will future-proof your project, making it easier to scale over longer periods and reducing the potential for costly redesigns and upgrades.
By supporting some of the latest connectivity standards available on the market, you’ll meet and exceed your end users’ expectations while also maximizing your project’s profitability in the long run.
TobuFi supports 8devices’ Yocto Linux SDK, a valuable asset for project developers. This SDK is composed of multiple layers and open-source dependencies, providing essential development and upgrade tools that help developers integrate TobuFi modules and build tailored software distributions.
Tobufi supports 5 MHz & 10MHz narrow channels. Narrow channels can significantly increase the transmission range of your modules, making them crucial for manufacturing, drones, warehousing, and other applications requiring long-distance coverage.
| SoC | QCS405, QCN9074 & WCN3980 from Qualcomm |
|---|---|
| CPU | Arm Cortex A53 quad-core; 1.4GHz; 64-bit |
| GPU | Qualcomm® AdrenoTM 306 graphics processing unit with 64-bit addressing; 600MHz |
| Flash | 8192MB eMMC |
| RAM | 1024MB LPDDR3 |
| Ethernet | 1 x 1000 Base-T |
|---|---|
| USB | USB 3.0, USB 2.0 |
| PCIe | N/A |
| Serial Interfaces | I2S, I2C, SPI, UART, DSI |
| GPIOs | 92xGPIO |
| Miscellaneous | HDMI, RGMI, DMIC, SDC |
| Radio | Long range connectivity radio (based on QCN9074 from Qualcomm) | 2x4 MU - MIMO | Short range connectivity data radio (based on WCN9380 from Qualcomm): 1x1 |
|---|---|---|
| Wireless Standard | Improved IEEE 802.11 a/b/g/n/ac/ax | Improved IEEE 802.11 a/b/g/n/ac |
| Frequency | 2412-2484 MHz 5180-5885 MHz 5955-7115 MHz | 2412-2484 MHz 5180-5885 MHz |
| Extended Frequencies (preliminary) | 2360 ~ 3150 MHz (2.4 GHz) 4550 ~ 6630 MHz (5GHz) 5325 ~ 7495 MHz (6GHz) | N/A |
| Channel sizes | 5/10/20/40/80/160 MHz | 20/40/80 MHz |
| Modulation | OFDMA | - |
| Data Rate | 2402 Mbps (5 GHz | 160 MHZ @mcs11) | 433.3 Mbps (5 GHz | 80 MHz @mcs9) |
| Max Output Power (per chain) | 29 dBm @2.4MHz MCS0 26 dBm @5GHz MCS0 | 16 dBm @2.4GHz MCS0 16 dBm @5GHz MCS0 |
| Linux OpenWrt | |
|---|---|
| Yocto/ OpenEmbedded | |
| FirmUx |
| Power Supply | 3.3V, 5V |
|---|---|
| Power Consumption | TBD |
| Dimensions | 36.6 x 76.6 mm |
| Weight | 22 g |
| Temperature Range | -45°C to 75°C |
| Mounting | Single side |
| Pin Type | LGA |
| Certifications | CE, FCC, IC - TBD |
| SoC | QCS405, QCN9074 & WCN9380 from Qualcomm |
|---|---|
| CPU | Arm Cortex A53 quad-core; 1.4GHz; 64-bit |
| GPU | Qualcomm® AdrenoTM 306 graphics processing unit with 64-bit addressing; 600MHz |
| Flash | 8192MB eMMC |
| RAM | 1024MB LPDDR3 |
| Ethernet | 1 x 1000 Base-T |
|---|---|
| USB | USB 3.0, USB 2.0 |
| PCIe | N/A |
| Serial Interfaces | I2S, I2C, SPI, UART, DSI |
| GPIOs | 92xGPIO |
| Miscellaneous | HDMI, RGMI, DMIC, SDC |
| Wireless Standard | Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax) |
|---|---|
| Bluetooth Standards | BT 5.0 |
| Radio Mode | Dual Band, 2x4 MU-MIMO |
| Frequency | 2312-3000 MHz & 4900-5925MHz; |
| Channel Size | 5,10,20,40, 80, 160 MHz |
| Data Rate | 4800Mbps 5GHz, 1147 Mbps @ 2.4GHz |
| Antenna Options | 5 x pin |
| Max Output Power (per chain) | 28 dBm @ 2GHz 27 dBm @ 5GHz |
| Linux OpenWrt | |
|---|---|
| Yocto/ OpenEmbedded | |
| FirmUx |
| Power Supply | 3.3V, 5V |
|---|---|
| Power Consumption | TBD |
| Dimensions | 36.6 x 76.6 mm |
| Weight | 22 g |
| Temperature Range | -45°C to 75°C |
| Mounting | single side |
| Pin Type | LGA |
| Certifications | CE, FCC, IC - TBD |
