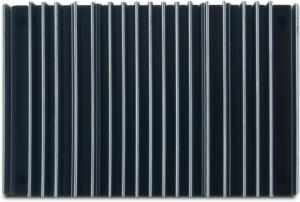

 Robonode |  Maca 2 | |||
|---|---|---|---|---|
Platform | ||||
| SoC | Qualcomm® QCS405 | Qualcomm SoC | ||
| CPU | Arm Cortex A53 quad-core; 1.4GHz; 64-bit | 24Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache; 650 MHz | ||
| GPU | Qualcomm® AdrenoTM 306 graphics processing unit (GPU) with 64-bit addressing; 600MHz | - | ||
| Flash | 8GB eMMC | 32 MB | ||
| RAM | 1024MB LPDDR3 | 128 MB | ||
Wireless | ||||
| Radio | Long range connectivity radio (based on QCN9074 from Qualcomm) | Short range connectivity data radio (based on WCN3980 from Qualcomm) | ||
| Wireless Standard | Improved IEEE 802.11 a/b/g/n/ac/ax | Improved IEEE 802.11 a/b/g/n/ac | Improved IEEE 802.11 b/g/n | |
| Radio Mode | 2x4 MU - MIMO | Single Band (1x1) | Single Band, MIMO (2X2) | |
| Frequency | 2412-2484 MHz 5180-5885 MHz 5955-7115 MHz | 2412-2484 MHz 5180-5885 MHz | 2412-2472 MHz | |
| Extended Frequencies | 2360 ~ 3150 MHz (2.4 GHz) 4550 ~ 6630 MHz (5GHz) 5325 ~ 7495 MHz (6GHz) | N/A | 2152 - 2852 MHz | |
| Channel sizes | 5/10/20/40/80/160 MHz | 20/40/80 MHz | 1.5 - 19.5 (.5 MHz increments) / 20 / 40 MHz | |
| Modulation | OFDMA | - | Up to 64-QAM | |
| Data Rate | 2402 Mbps (5 GHz | 160 MHZ @mcs11) | 433.3 Mbps (5 GHz | 80 MHz @mcs9) | Up to 300 Mbps @ 40MHz Bandwidth | |
| Max Output Power (per chain) | 29 dBm @2.4MHz MCS0 26 dBm @5GHz MCS0 | 16 dBm @2.4GHz MCS0 16 dBm @5GHz MCS0 | 36 dBm | |
| Max Output Power | 32 dBm @2.4MHz MCS0 29 dBm @5GHz MCS0 | 16 dBm @2.4GHz MCS0 16 dBm @5GHz MCS0 | 39 dBm | |
Features | ||||
| AP / Station | ||||
| Wireless Unidirectional Broadcast | ||||
| Single config file | ||||
| Spectrum scanner | ||||
| System management (GUI/CLI) | ||||
| Configuration over USB storage | ||||
| ADB over USB connection | ||||
| USB to ETH adapter mode | ||||
| Security | ChaCha20 Poly1305, AES128, WPA2-CCMP | ChaCha20 Poly1305, AES128, WPA2-CCMP | ||
Interfaces | ||||
| Ethernet | 1 x 1000 Base-T | x2 100Mbps | ||
| USB | DMIC;UART;SPI;I2C | x1 USB 2.0 | ||
| Push buttons | 1x Reset button 1x Boot button 1x GPIO | x1 Programmable GPIO x1 Reset | ||
| Fan | Programmable fan (GND controlled via MOSFET with GPIO_39) | x1 | ||
| Slide-switch | x1 Cut USB0 Power for USB recovery mode, x1 GPIO | Gpio slide-switch | ||
| Antenna connector type | MMCX | MMCX | ||
Power | ||||
| DC Power (connector type) | 8.6 - 33.8 V (JST) | 14-33 V JST connector | ||
| Power consumption (with max output power) | 17W | 23.2W | ||
| Power consumption (with max output power) | 17W | 23.2W | ||
Physical | ||||
| Dimensions | 108.5 x 73.5 x 20 mm | 73x47x23mm | ||
| Product Weight | 178 g | 74g | ||
| Temperature range | -45°C to 75°C* We recommend connecting a software-controlled ventilator (not included) to ensure optimal performance under maximum temperature conditions. | -40°C - +85°C | ||
| Box content (DVK) | 1 x Robonode 1 x Power cable, 100 mm 2 x USB cable, 100 mm 1 x ETH cable, 100 mm 1 x UART cable, 100 mm 4 x GPIO cable, 100 mm 1 x ETH adapter board 2 x USB adapter board 5 x RF MMCX-SMA cable, 100 mm 5 x 2.4/5/6GHz omni antenna 1 x 12 V power supply | x1 Maca 2, x1 Fan x1 Power supply with AC cable x1 Maca 2 Interface kit x1 Maca 2/Interface kit ethernet cable x1 Maca 2/Interface kit power cable x2 Antenna cable + Antennas | ||
| Warranty | 1 year | 1 year | ||
| Certification | CE mark (pending) IC / FCC (pending) | N/A | ||
