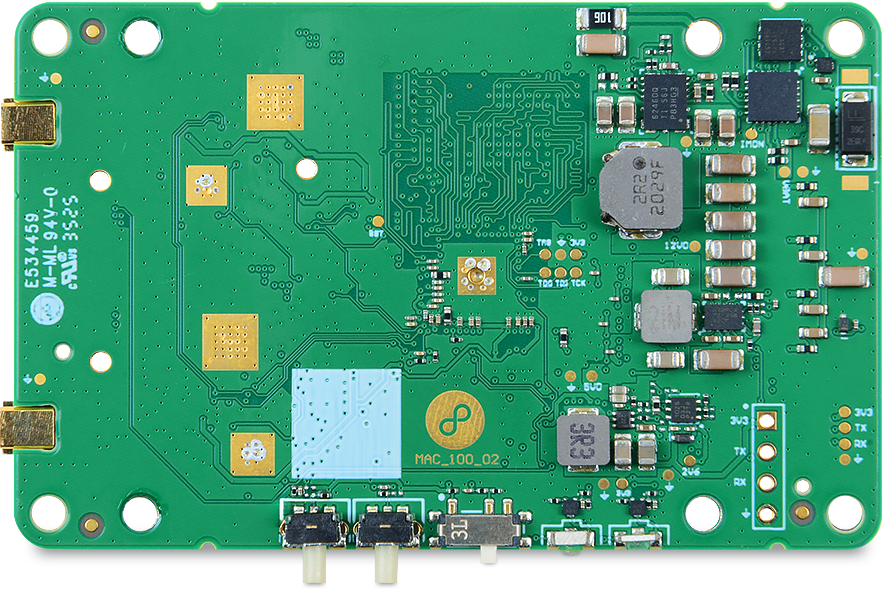

Maca 2 is an ultra-high-power data radio built using a Qualcomm SoC. Its pre-loaded Robosoft firmware and optimized hardware deliver connectivity ranges of up to 80km. Key features include narrow channels, expanded frequency ranges, precision frequency control and interference mitigation. Its cost-efficiency and optimized performance make Maca 2 a highly scalable drone and robotics connectivity solution.

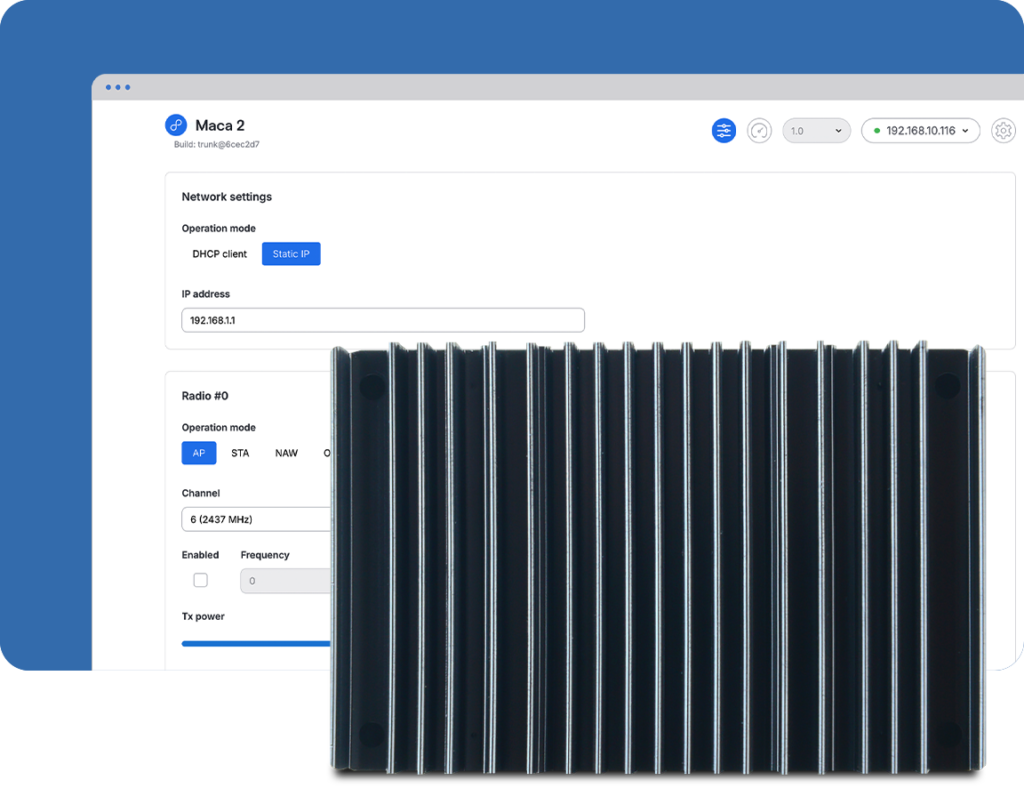

Maca 2 comes pre-loaded with Robosoft, our embedded Linux software platform. Narrow channels, precision frequency control, and broad frequency coverage firmware support means that Maca 2 comes ready to configure and use right out of the box. These and other key Robosoft features make it perfect for delivering reliable wireless connectivity in your drone, robotic and industrial projects.
Ack-less unidirectional broadcast support improves Maca 2’s link strength and stability in dynamic and congested or jammed RF environments. Users can configure integrated forward error correction, automatic rate control, and optional forced retransmission to optimize Maca 2 for their target use case or mission.
By supporting ultra-narrow channels from 1.5 MHz to 19.5 MHz, Maca 2 maximizes spectral efficiency and significantly extends communication range.This flexibility drives Maca 2’s smart spectrum awareness, ensuring stable connectivity and optimal performance in congested environments.
Maca 2 unlocks an additional 616 MHz of spectrum beyond the crowded 2.4 GHz ISM band. Unlike frequency-locked radios, Maca 2 lets users operate on any channel across the 2152–2852 MHz range. This expanded range improves Maca 2’s flexibility in congested environments and enhances frequency hopping interference mitigation performance.
The Maca-M variant comes with pre-loaded Meshmerize software that enables powerful mesh network functionality. Implement multi-path routing, traffic prioritization, effortless network scaling, and more.

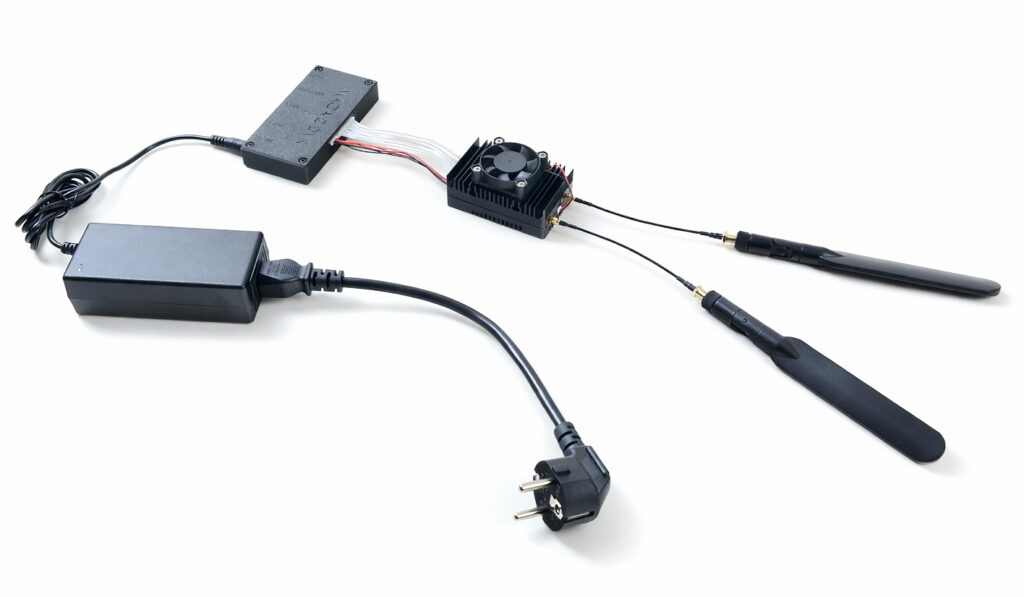

AC power cable
Maca2 interface board
Power supply
Power supply + Interface board cables
Fan
Maca2
RF cables
Antennas
| SoC | Qualcomm SoC |
|---|---|
| CPU | 24Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache; 650 MHz |
| GPU | - |
| Flash | 32 MB |
| RAM | 128 MB |
| Radio Mode | Single Band, MIMO (2X2) |
|---|---|
| Wireless Standard | Improved IEEE 802.11 b/g/n |
| Frequency | 2412-2472 MHz |
| Extended Frequencies | 2152 - 2852 MHz |
| Channel sizes | 1.5 - 19.5 (.5 MHz increments) / 20 / 40 MHz |
| Modulation | Up to 64-QAM |
| Data Rate | Up to 300 Mbps @ 40MHz Bandwidth |
| Max Output Power (per chain) | 36 dBm |
| Max Output Power | 39 dBm |
| AP / Station | |
|---|---|
| Wireless Unidirectional Broadcast | |
| Single config file | |
| Spectrum scanner | |
| Configuration over USB storage | |
| ADB over USB connection | |
| USB to ETH adapter mode | |
| System management (GUI/CLI) | |
| Security | ChaCha20 Poly1305, AES128, WPA2-CCMP |
| Ethernet | x2 100Mbps |
|---|---|
| USB | x1 USB 2.0 |
| Push buttons | x1 Programmable GPIO x1 Reset |
| Fan | x1 |
| Slide-switch | Gpio slide-switch |
| Antenna connector type | MMCX |
| DC Power (connector type) | 14-33 V JST connector |
|---|
| Power consumption (with max output power) | 23.2W |
|---|
| Dimensions | 73x47x23mm |
|---|---|
| Product Weight | 74g |
| Temperature range | -40°C to 85°C*
|
| Box content (DVK) | x1 Maca 2, |
| Warranty | 1 year |
| Certification | N/A |
Does your project require a custom hardware or software solution? Are you looking for an experienced partner to help develop your solution? 8devices can help.
Take advantage of our extensive R&D experience by working with our hardware and software engineers to develop the exact solution you need. From custom modules and components to specialized firmware or cutting-edge software features – anything is possible
8devices can fulfill and scale production runs for any design our engineers have created for you.
