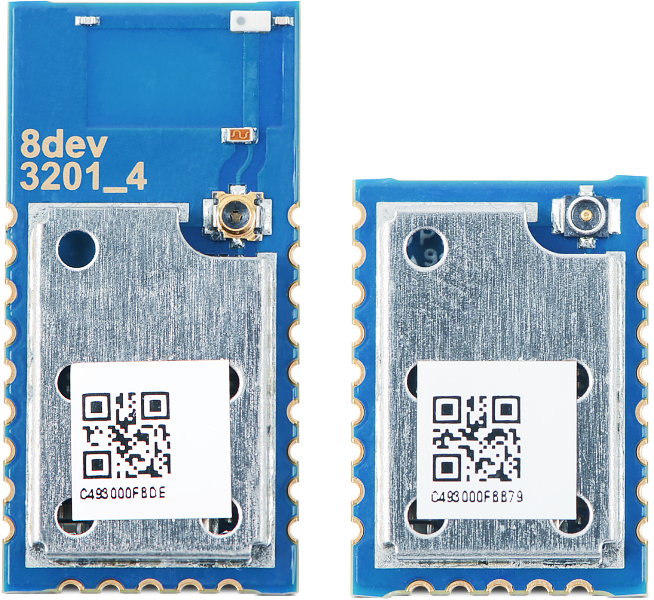

Blue Bean is a high-performance and ultra-low-power surface-mount USB Wi-Fi radio module. Its tiny form factor makes it easy to add single-stream 11ac Wave2 Wi-Fi and Bluetooth 5.0 to your project.
Despite its small size, this module manages to fit in dual-band (2.4 and 5 GHz) 1×1 802.11ac Wave2 Wi-Fi (supporting MU-MIMO) and Bluetooth capabilities. Blue Bean delivers extraordinary performance and value to projects of any size.
USB Wi-Fi and Bluetooth
Dual-band ceramic antenna
BLUE bean A module
Turn on/off WLAN and Bluetooth
Dual-band ceramic antenna
| Radio Chip | QCA9377-7 from Qualcomm |
|---|---|
| Wi-Fi Interface | USB 2.0 |
| Bluetooth Interface | USB1.1 |
| Linux / Android | qcacld-3.0 |
| Linux Mainline Kernel | N/A |
| Windows support | Windows 10 & 11 |
| Wireless Standard | Wi-Fi 5 (IEEE 802.11 a/b/g/n/ac Wave2) |
|---|---|
| Bluetooth Standards | BT 5.0 + HS, BLE, ANT+ |
| Radio Mode | Dual band, SISO |
| Frequency | 2412-2472MHz & 5180-5885MHz |
| Channel Size | 20,40,80 MHz |
| Data Rate | 433 Mbps |
| Antenna Options | HSC connector / Integrated Antenna |
| Max Output Power (per chain) | 20 dBm |
| Linux OpenWrt | |
|---|---|
| FirmUx |
| Power Supply | 3.3V |
|---|---|
| Power Consumption | 1.8 W |
| Dimensions | 17 mm x 12 mm |
| Weight | 0.9 g |
| Temperature Range | -40°C to +85°C |
| Mounting | Dual side |
| Pin Type | Half circle castellated via |
| Certifications | CE, FCC, IC, UKCA |
