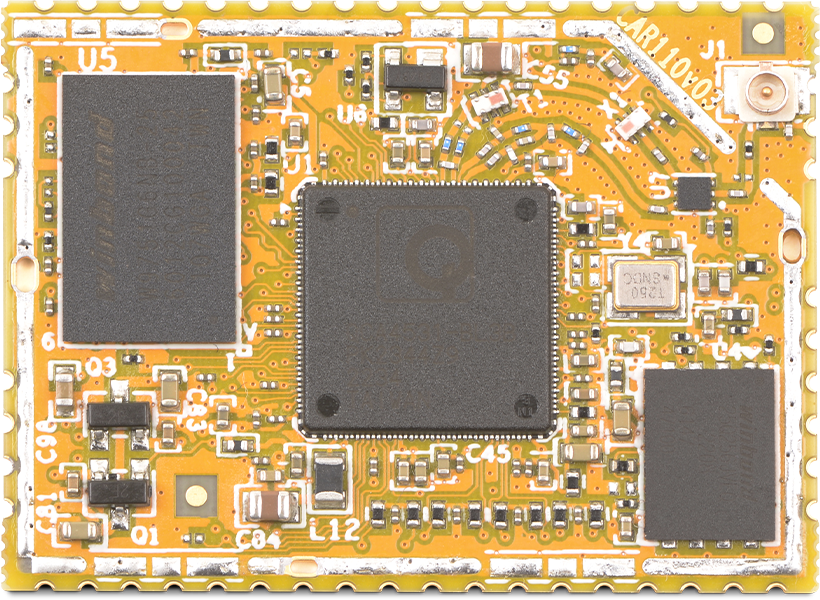

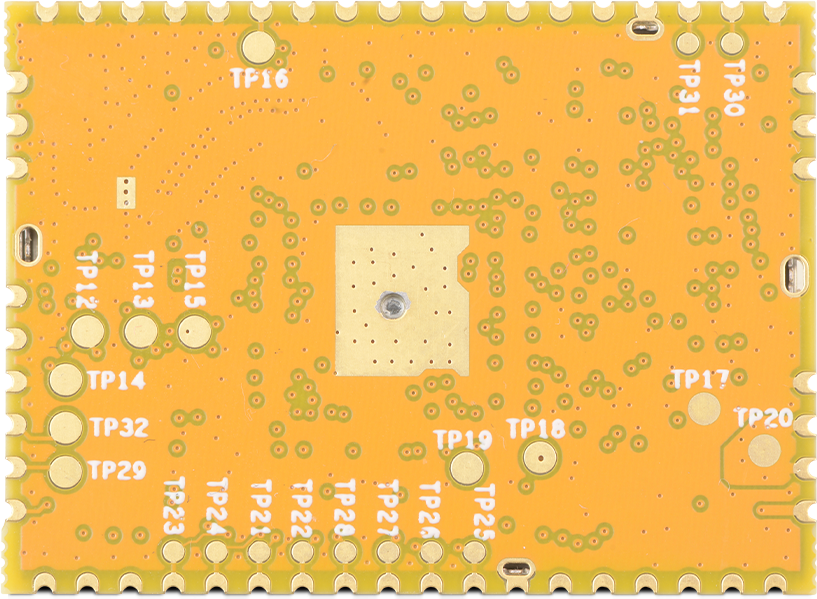

Carambola 3
The Carambola3 is a System on Module (SoM) based on the Qualcomm QCA4531 chipset. It is pin-to-pin compatible with the Carambola2 module, meaning that it has the same physical dimensions and pinout as the Carambola2. This allows for easy integration of the Carambola3 into existing systems that use the Carambola2 module.
Buy commercial Buy industrial Buy DevKitOverview
It is a compact and powerful module that integrates a variety of features, including Wi-Fi as well as a range of other interfaces and peripherals. The module is designed for use in a wide range of embedded applications, including Internet of Things (IoT) devices, industrial automation systems, and smart home devices. The QCA4531 chipset provides high performance and low power consumption. The Carambola3 SoM is designed to be easily integrated into a wide range of platforms and products, reducing development time and costs.
Module comes in two versions: Commercial, operating in 0-65 °C (Carambola3), Industrial, operating in -40-85 °C (Carambola3-I).
Specs
- CPU
- QCA-4531, 650 MHz
- Memory
- 32 MB Flash and 128 MB DDR2 RAM
- Frequency
- 2.4 GHz
- Max output power
- 21 dB
- Wireless standard
- 802.11 bgn
- Antenna (port)
- U.FL connector
- Power supply
- 3.3 V, power consumption 1.6 W
- Available interfaces
- USB 2.0 host, serial port, 2 x Ethernet (100 Base-T), GPIO
- Size
- 28 by 38 mm
- Software
- OpenWrt
Development board details
- E1 - Integrated 2.4 GHz chip antenna
- J12, J13 - 2 x 10 2.54 mm pitch prototyping area holes
- J3 - ETH0 LAN port
- J4 - ETH1 LAN port
- J8 - Type A USB socket
- J14 - USB C socket (console + power 5V)
- S1 - Hardware reset button
- S2 - GPIO programable button
