Komikan
A powerful dual-band 802.11ac Wave2 radio module with BT v4.1 support. Small, fast, low power consumption and cost-effective.
Buy module Buy DevKitOverview

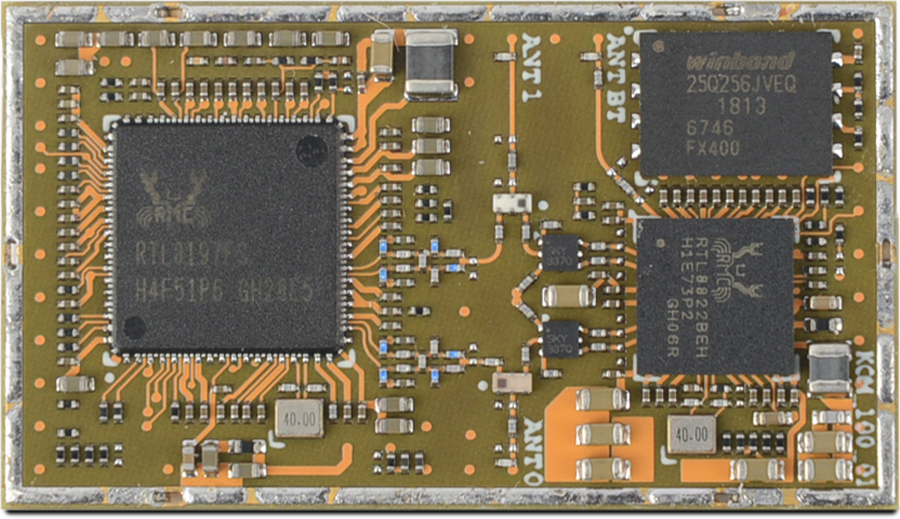

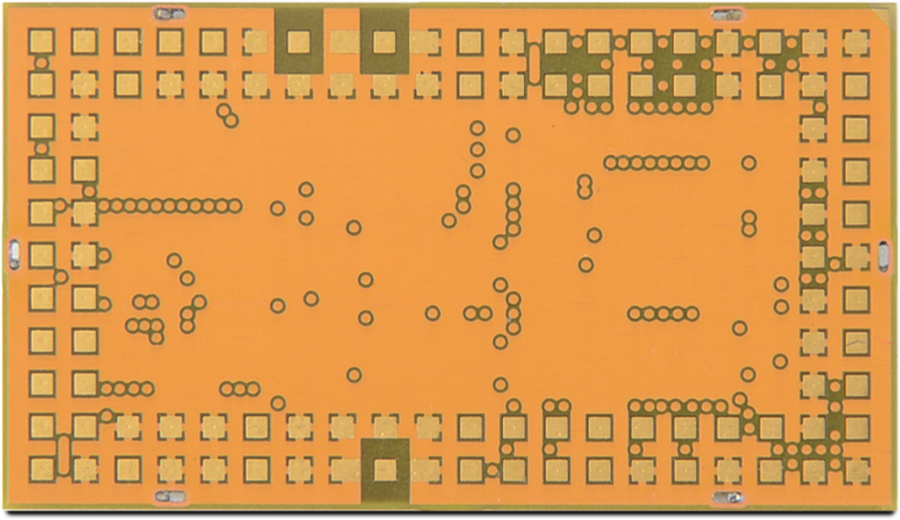

Komikan is a dual-band 802.11ac Wave2 module with BT v4.1 support. Two integrated radios (2.4 and 5GHz) can achieve up to 1.166Gbps data rates and are backed by a powerful 1GHz MIPS24Kc CPU. The module is in LGA (land grid array) form and is ideal for designs restricted by space. Komikan does not require heat-sink like other 802.11ac Wave2 modules and has low power consumption specs. It has multiple I/O interfaces to connect peripherals and comes with OpenWRT Linux operating system.
Specs
- CPU
- RTL8197FS (1 GHz CPU based on MIPS 24Kc core) + RTL8822BEH
- Memory
- 32 MB FLASH, 128 MB RAM
- Frequency
- 2.4 and 5 GHz concurrent
- Max output power
- 22 dBm per chain
- Wireless standard
- 802.11 a/b/g/n/ac Wave2 + BT v2.1/3.0/4.1
- Antenna
- Pin access
- Power supply
- 3.3V, max power consumption 6W
- Available interfaces
- 44 x GPIO, 2 x USB 2.0 host, 4 x UART (one for BT), RGMII, 2 x SPI, PWM, MDIO, eMMC, JTAG, 2 x I2S, PCM, 2 x I2C, P-NAND, 100 Base-T
- Size
- 37.5 by 21.3 mm

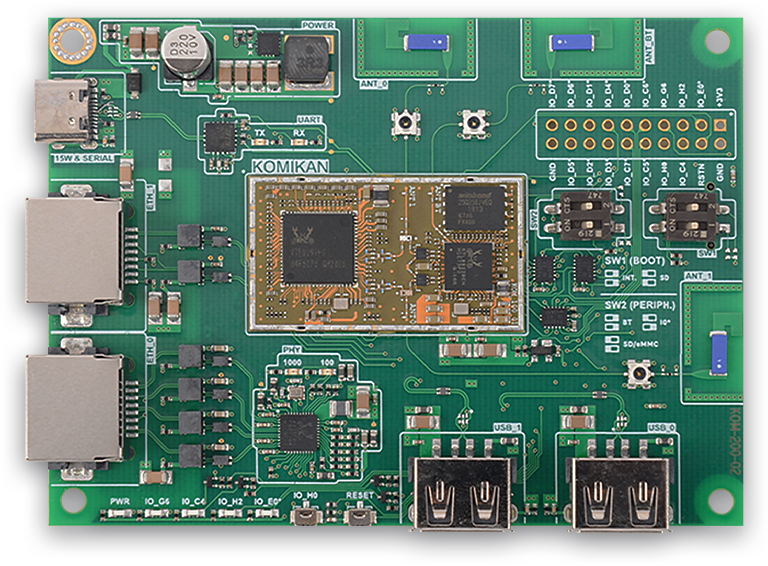

Development board details
- 1 - USB – C (Power supply, UART console)
- 2 - Ethernet port 100/10 Mbps
- 3 - Ethernet port 1000/100/10 Mbps
- 4 - WiFi antenna (2.4/5G)
- 5 - Bluetooth antenna
- 6 - GPIO header
- 7 - WiFi antenna (2.4/5G)
- 8 - USB type A (2.0)
- 9 - USB type A (2.0)
- 10 - Buttons (Reset, GPIO)
- 11 - Dip switches (bootstrap and peripheral selection)
- 12 - Komikan module
