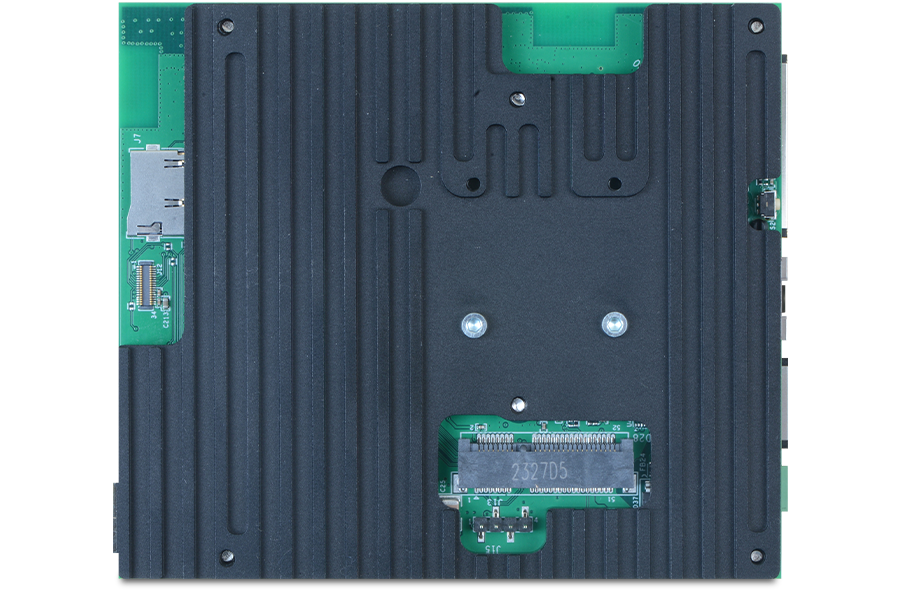

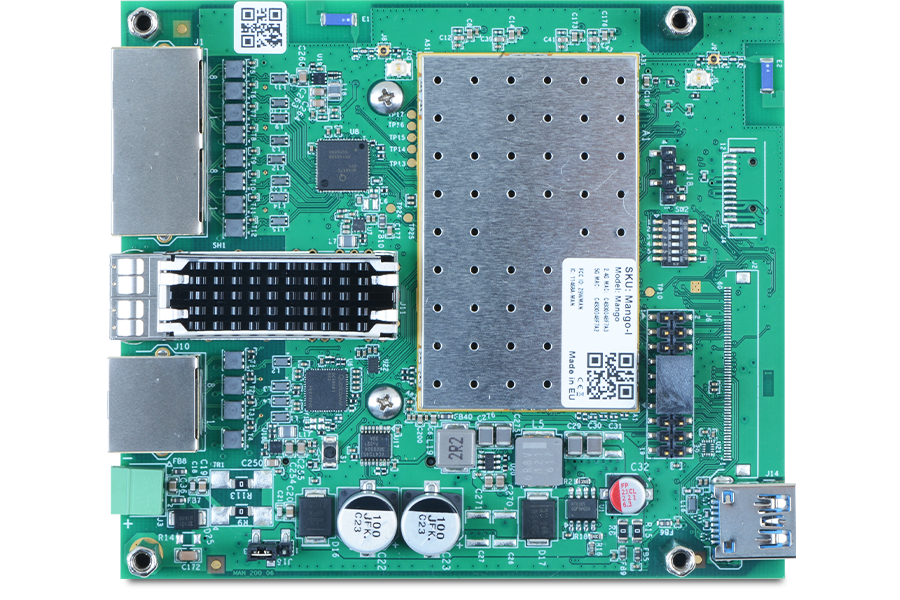

Development board details
Explore more about the development board components by hovering over a bullet points.
Get Mango DVKThis SoC features a 1.8GHz quad-core ARM Cortex A53 CPU, 32MB of NOR flash with parallel NAND, and 512MB DDR3L RAM

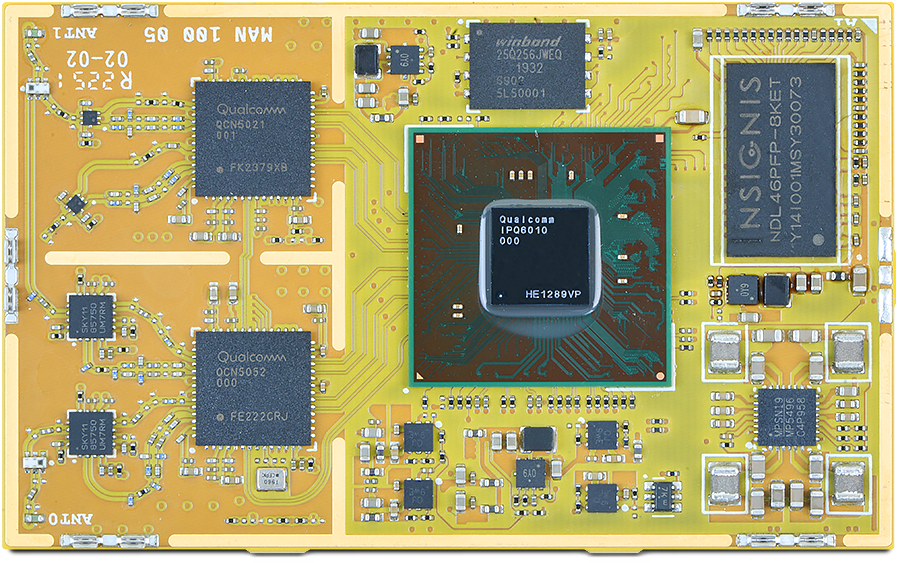

Mango is a networking-optimized dual-band Wi-Fi SoM that uses the Qualcomm IPQ6010 to deliver high-performance Wi-Fi 6 connections and offers a vast range of interface options that make it perfect for networking devices.
Mango & Pineapple support 5 MHz & 10MHz narrow channels. Narrow channels can significantly increase the transmission range of your modules, making them crucial for manufacturing, drones, warehousing, and other applications requiring long-distance coverage.
UART header
Configuration switch
GPIO header
USB 3.0 interface
DC power supply 9-60V
2.5 Gbps ETH interface + POE passive 24-48V
SFP Port
2x ETH 1Gbps interfaces
1st Wi-Fi antenna and U.FL connector
2nd Wi-Fi antenna and U.FL connector
Reset button
SD card socket
EMMC module socket
mPCIE socket with PCIe3.0, USB2.0 interfaces
Programmable button (GPIO79)
| SoC | IPQ6010 from Qualcomm |
|---|---|
| CPU | Quad Cortex-A53 @ 1.8GHz |
| GPU | N/A |
| Flash | 32 MB NOR and parallel NAND (external) |
| RAM | 512 MB DDR3 @ 933 MHz (or 1GB ) |
| Ethernet | [2 x 2.5GE] or [1x2.5GE+4x1GE] or [5 x 1GE] |
|---|---|
| USB | USB3.0, USB2.0 |
| PCIe | PCIe3.0 |
| Serial Interfaces | 6 x BLSP (SPI/UART/I2C configuration ports), 4 x PWM, SDIO3.0 |
| GPIOs | 50 x GPIOs |
| Miscellaneous | eMMC, Parallel NAND and MIPI DBI v2.0 type B interface |
| Wireless Standard | Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax) |
|---|---|
| Bluetooth Standards | N/A |
| Radio Mode | Dual-band 2x2 MIMO concurrent radio |
| Frequency | 2412-2472MHz & 5180-5885MHz |
| Channel Size |
5*,10*,20,40, 80 MHz * - Unlocks FirmUx |
| Data Rate | 1201Mbps @ 5GHz, 573.5 Mbps @ 2.4GHz |
| Antenna Options | 2 x pin |
| Max Output Power (per chain) | 22 dBm |
| Linux OpenWrt | |
|---|---|
| Yocto/ OpenEmbedded | |
| FirmUx |
| Power Supply | 3.3V |
|---|---|
| Power Consumption | 9.6 W |
| Dimensions | 38.3 mm x 61.7 mm |
| Weight | 15 g |
| Temperature Range | 0°C to +65°C | -40°C to +85°C |
| Mounting | Dual side |
| Pin Type | LGA |
| Certifications | CE, FCC, IC |
