Development board details
Explore more about the development board components by hovering over a bullet points.
Get DVKThis chip delivers HomePlug GreenPHY and UART and SPI interface capabilities

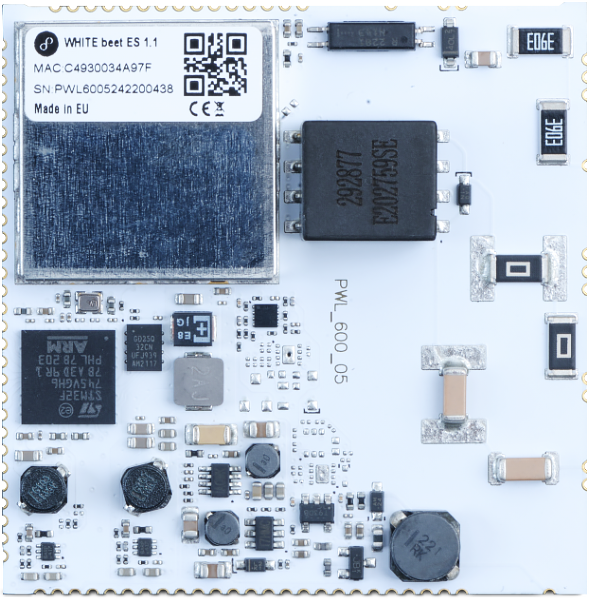

The WHITE Beet family of universal full-featured powerline modules is based on Qualcomm’s QCA7005 chip and uses the HomePlug GreenPHY standard. A suite of integrated tools, including ISO/IEC 15118, Control Pilot EV side functionality, and other key features, makes it the perfect ready-to-use solution for e-mobility (EVSE and PEV). However, WHITE Beet is also perfect for smart grid, smart meter, IoT and other long-range communication applications.
Ethernet interface RJ45 connector
USB-C connector for UART debugging console
4-pin UART debugging console header
RESET button and (S2) Boot button (required for software development)
Jumper for +5V DC power supply source selection
20-pin GPIOs header #2
6-pin SPI interface header
10-pin SWD interface header for programming and debugging
Micro switch to select active QCA7005 firmware version
USB-C connector for +5V DC power supply and USB communication
CAN interface connector
Alternative +5V DC power supply connector
Control Pilot (CP) and Protected Earth (PE) connectors
Zero-cross input (ZC_L / ZC_N) connectors
4-pin I2C interface header
20-pin GPIOs header #1
|
White Beet E
|
White Beet P
|
White Beet H
|
|
|---|---|---|---|
| Powerline chip | QCA7005-AL33 | QCA7005-AL33 | QCA7005-AL33 |
| Firmware version | Qualcomm HomePlug GreenPHY FW v3.0 | Qualcomm HomePlug GreenPHY FW v3.0 | Qualcomm HomePlug GreenPHY FW v3.0 |
| Configuration | E-mobility Bridging/SLAC software as a closed system E-mobility ISO 15118 / DIN 70121 / SAE J2847/2 stack software as a closed system E-mobility SDK Open (no embedded firmware) | SLAC/Bridging Mode as closed system Embedded ISO15118 Mode as a closed system SDK Open Mode – no embedded firmware | EN 55022 and EN 50561-1 configuration settings selectable with a GPIO |
| Host Interface | ETH / SPI | ETH / SPI | ETH |
| Mains Coupling | ZC detector | ZC detector | ZC detector |
| Max data rate | 9.8 Mbps PHY rate / 4.7 Mbps UDP data rate; | 9.8 Mbps PHY rate / 4.7 Mbps UDP data rate; | 9.8 Mbps PHY rate / 4.7 Mbps UDP data rate; |
| Overvoltage protection | 4 kV | 4 kV | 4 kV |
| Max distance | According to ISO/IEC 15118-3 | According to ISO/IEC 15118-3 | 300 meters |
| Power Supply | 3.3V | 3.3V | 3.3V |
| Power Consumption | 1W (at 25º C) | 1W (at 25º C) | 1W (at 25º C) |
| Temperature Range | -40º C to +105º C (board temperature) | -40º C to +105º C (board temperature) | -40º C to +105º C (board temperature) |
| Size | 50 mm x 50 mm | 50 mm x 50 mm | 50 mm x 50 mm |
| Weight | 10.2 ±0.1 g | 9.9 ±0.1 g | 10.1 ±0.1 g |
| Mounting | Single Side | Single Side | Single Side |
| Certifications | CE | CE | CE |
| Applications | Electric vehicle charging stations | Electric vehicles | Home Control / Smart Grid |
