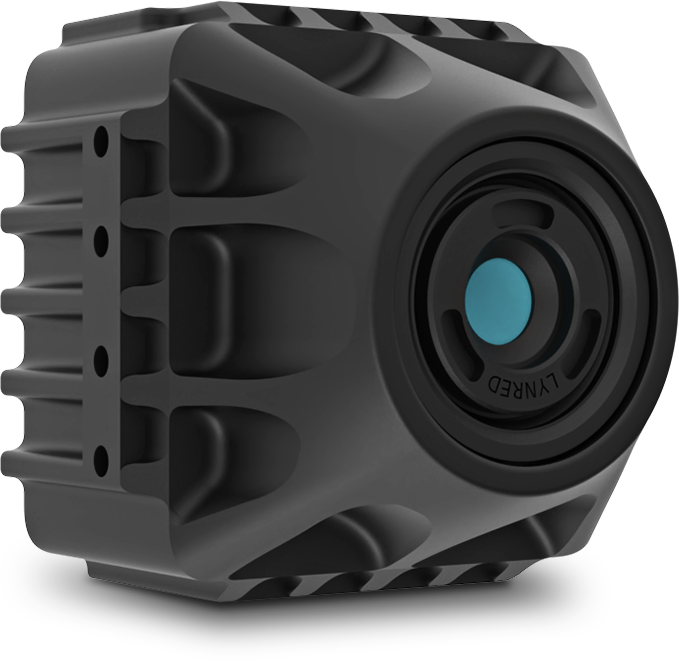

8Sight T100 is a thermal video camera powered by an Arm Cortex-M55-based platform with a dedicated NPU and hardware ISP for accelerated edge AI and real-time video analysis. With the Lynred ATI320 LWIR sensor, the 8Sight T100 delivers thermal video at 60 FPS in a small form factor that makes it perfect for UAS applications.
The ARM Cortex M55’s Neural Processing Unit and Image Signal Processor are key enablers for your edge AI video analysis solution. Incorporating these powerful tools makes it possible to implement object detection, classification, AI-assisted upscaling, and temperature-triggered event detection at the edge.

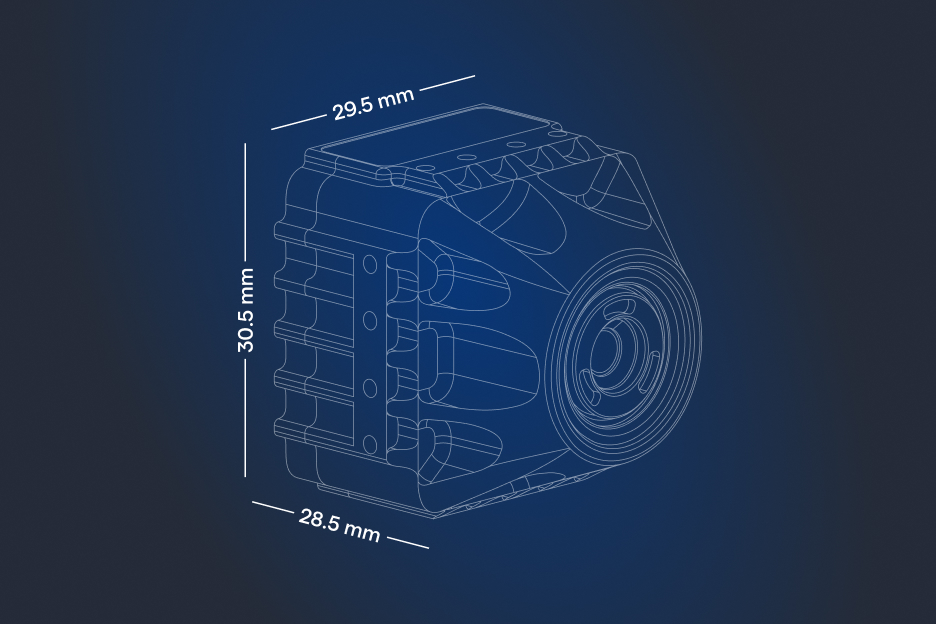

The 8Sight T100's impressive performance comes in a tiny form factor of just 28.5 x 30.5 x 29.5 mm. Its small size, weight, and 4x M2 mounting holes were all designed to make 8Sight T100 easier to integrate into UAS and other space- or weight-restrictive platforms.

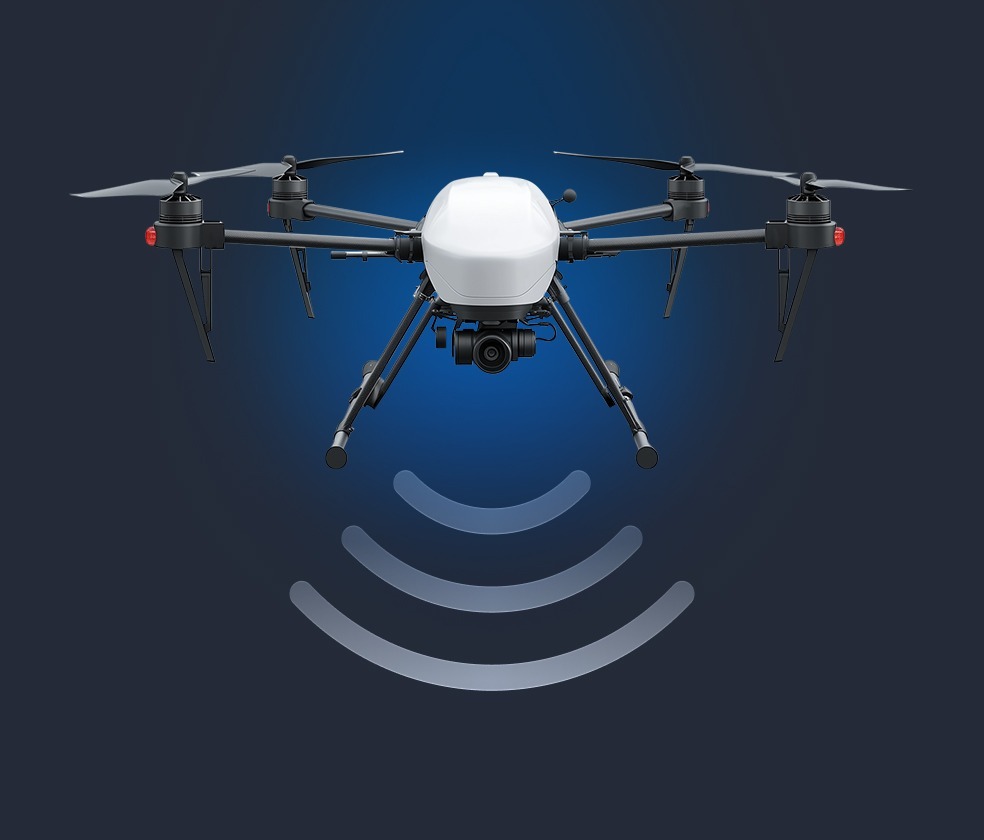

Pair the 8Sight T100 with RobonodeVision for a fast, long-range and high-throughput UAS thermal video transmission system. Robonode Vision’s embedded video transmission hardware and dual-band Wi-Fi 7 radio system are an excellent complement to the 8Sight T100’s mobile LWIR video capabilities.
| Microcontroller | Arm Cortex-M55, up to 800MHz — dedicated NPU + hardware ISP |
|---|---|
| RAM | RAM 256 Mb @ 200 MHz (16-bit) |
| Flash | NOR Flash 512 Mb |
| AI inference time (preliminary) | < 100 ms (model-dependent) |
| Image processing latency (preliminary) | < 50 ms |
| Thermal sensor | Lynred ATI320 |
|---|---|
| Resolution | 320 × 240 px |
| Frame rate | 60 FPS |
| Pixel pitch | 12 µm |
| Spectral range | LWIR, 8–14 µm |
| Thermal sensitivity (NETD) | < 50 mK |
| USB interface | USB 2.0 High-Speed, JST connector (BM04B-GHS-TBT) |
|---|---|
| Supported USB formats | MJPEG, H.264, YUV422, RAW8, RAW16 |
| Ethernet interface | 100 Mb/s PHY, JST connector (BM05B-GHS-TBT) |
| Supported Ethernet formats | MJPEG, H.264
|
| Power supply | 5V via USB |
|---|---|
| Dimensions | 28.5 x 30.5 x 29.5 mm |
| Product weight | 38g |
| Mounting | M2 holes on 4 sides |
